Concepting
Early work revolved around the configuration of the new line. What features it would have and what the specified output was going to be.
3D Modeling

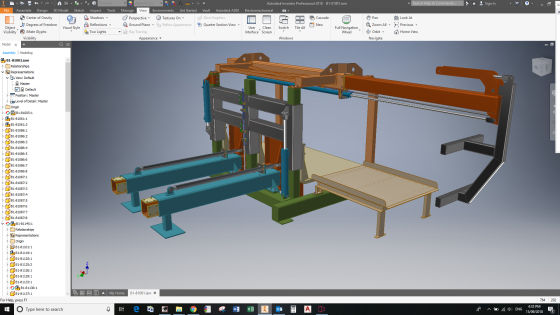

New assemblies were designed with a lot of input from Balco's project management team.
Detail Drawings

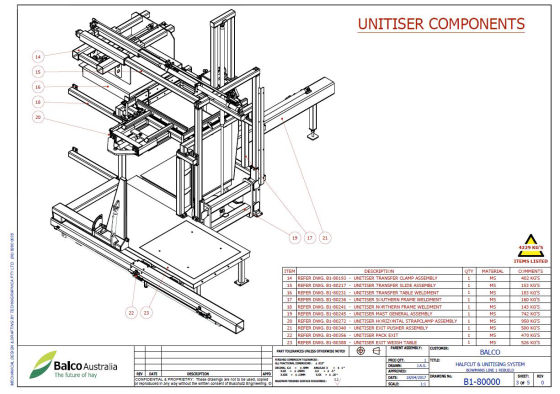

The lean system that Technigraphica has developed for detail drawings and DXF profiles, allows us to rapidly make the transition from concept to manufacturing.
Computer Animation
All of the models were compiled into one large file which was turned into a computer animation...see below.
The animation was invaluable for project planning with the army of trades and services that were being brought in to make the schedule happen.
Hazard Assessment

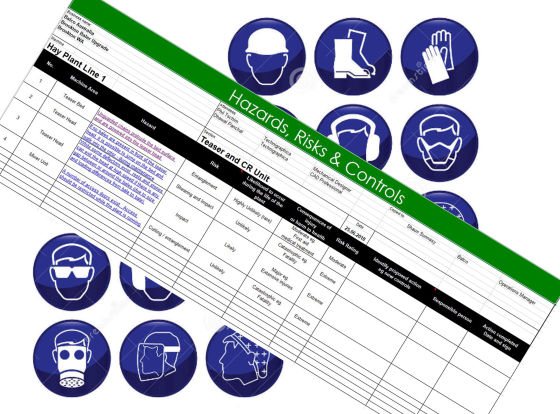

Technigraphica use a form that they have developed themselves to visually identify and rate hazards on Hay Plant.
This form has been shared with and used in the wider industry and formed an integral part of Balco's safety strategy for the rebuild.
Hosting Drawing Package

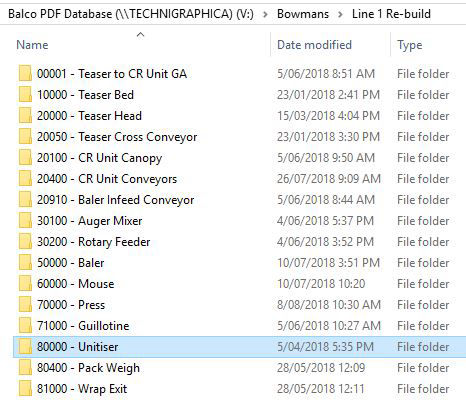

The entire drawing package of 2500 PDF files is available to Balco online.
Technigraphica hosts most client drawing online via their server.
